Sunday Street Sweeper ‑ Jake Seeley Signature

The Street Sweeper is designed with serious street riders in mind.

Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tires, this is truly a pro-level bike. Follow @thejakeseeley.

Key Features

• Aftermarket Sunday Street Sweeper frame

• 100% Chromoly Forks and 4-piece Bars

• Sunday Seeley Signature Grips

• Sunday Blockhead Seat

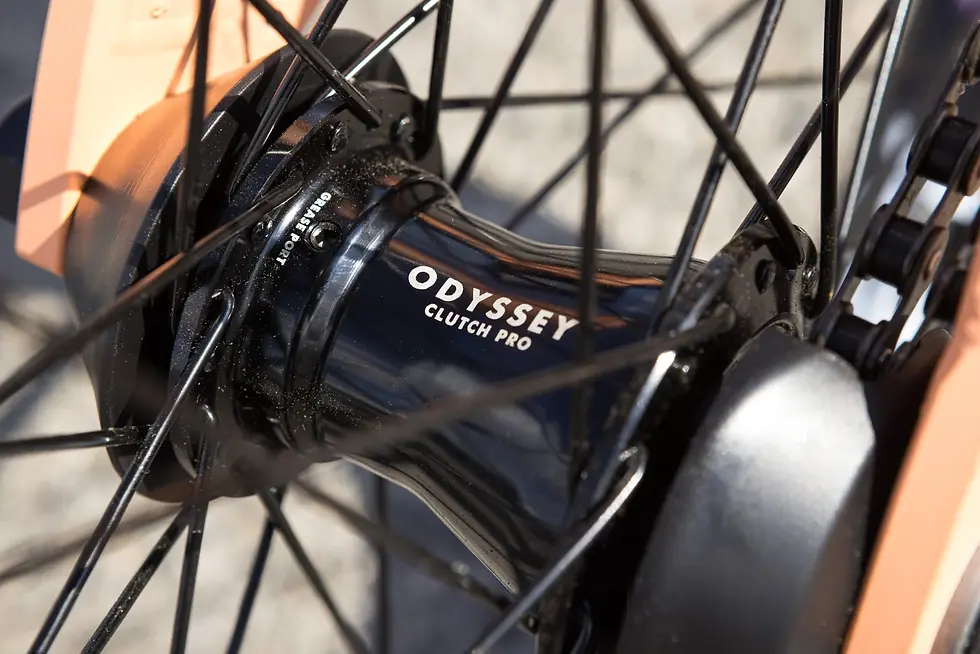

• Odyssey Clutch Pro Freecoaster

• Odyssey Quadrant Rims

• FSA Conical Headset

• Sunday Street Sweeper v2 2.4" Tires

Specifications

Frame: Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset  Handlebar: Sunday, 100% chromoly, 4-piece with bar pad Stem: Sunday Freeze top load, 48mm  Headset:  FSA integrated conical, 1-1/8"  Alloy Cap:  Sunday M16, aluminum  Brake Lever:  Odyssey Springfield  Brakes: Odyssey Springfield U-brake  Brake Cable:  Odyssey Quik Slic  Grips: Sunday Jake Seeley  Seat: Sunday Blockhead, Pivotal Seat post:  Sunday Pivotal  Seat Clamp: Integrated  Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum  Cranks: 160mm, 3-piece, chromoly  BB Parts: Sealed, Mid, 19mm  Pedals: Odyssey Twisted PC Pro  Rims: Odyssey Quadrant, 20", 36H  Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle  Rear Hub: Odyssey Clutch Pro freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, drive + non-drive side plastic guard  Spokes: 14g steel, black  Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R) Chain: KMC Z1 wide Approx. Weight: 24.97lbs (brakeless)

Frame Geometry

Top Tube Length: 20.75"  Head Tube Angle: 75.25°  Seat Tube Angle: 71°  Chainstay Length: 12.7"-13”  Bottom Bracket Height: 11.7"  Headtube Length: 4.7" Standover: 8.85”

Handlebar Geometry

Rise: 9"  Width: 29"  Backsweep: 12°  Upsweep: 3°
